WATCH WHAT WE CAN DO FOR YOU
SmarTV’s works with industry leaders to distribute video and satellite television and ensure the highest quality video distribution across all networked displays.
VIDEO DISTRIBUTION SYSTEM
We leverage existing or new cable infrastructure to offer a video distribution solution that challenges the status quo to distribute HD to Ultra-HD/4K video for our hospitality and commercial clients.
EASY VIDEO DISTRIBUTION
The easiest way to distribute multiple sources or channels of video up to 1080p resolution to an unlimited number of displays over almost any distance. The HDbridge series converts composite component, VGA, unencrypted HDMI, and even HD-SDI sources into a signal that is sent to your display’s digital tuner as well as an IP network.
With an HDbridge, you can send your content to an unlimited number of displays , and combine multiple units to enable over 100 different sources via a single coax cable.
This solution is ideal for anyone looking for an easy and affordable way to support a large number of displays with dynamic content such as a sports bar, house of worship, or using digital signage.

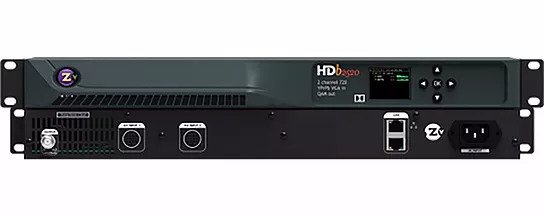

ZeeVee HDb2520 2 Channel HDbridge 2000 Series Encoder / Modulator 720p
Encodes two HD channels or sources directly into a private channels that can be received by an unlimited number of HDTV displays
-
Converts 2 Component or VGA video sources with analog or digital audio Inputs into 2 Digital HD channels on 1 QAM RF Frequency, with closed captioning support
-
Includes a free additional customizable channel with ZvShow to convert a video file into a separate channel to enable you to play commercials, update menu specials, or use as digital signage on any display.
-
Includes the ZeeVee Emergency Alert System (EAS) that can also connect into compatible national or local alert systems
-
Can be combined with additional units to support over 100 channels to an unlimited number of displays
There is also a Modulator 1080p available
ZeeVee HDb2840-NA 4 Channel HDbridge 2000 Series Encoder / Modulator HDMI 1080p
-
Encodes four 1080p unencrypted HDMI sources directly into private channels that can be received by an unlimited number of HDTV displays with Dolby Digital AC-3 Audio and closed captioning support
-
Includes a free additional customizable channel with ZvShow to convert a video file into a separate channel to enable you to play commercials, update menu specials, or use as digital signage on any display.
-
Includes the ZeeVee Emergency Alert System (EAS) that can also connect into compatible national or local alert systems
-
Delay matched audio output on the first port for synchronizing whole house audio
-
Can be combined with additional units to support over 100 channels to an unlimited number of displays
-
Five Year Warranty

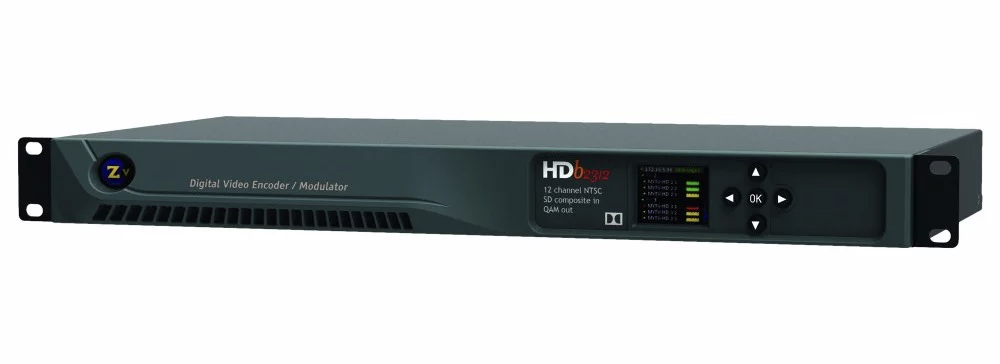

ZeeVee HDb2312 12 Channel SD Video Encoder / QAM Modulator – Composite / Analog audio
-
Encodes 12 SD channels or sources directly into a private channels that can be received by an unlimited number of televisions or displays with a QAM digital tuner
-
Creates 12 Digital SD channels with analog audio on 2 QAM RF frequencies, with closed captioning support
-
Delay Matched audio support for the first port for synchronized whole house audio
-
Includes the ZeeVee Emergency Alert System (EAS) that can also connect into compatible national or local alert systems
-
Can be combined with additional units to support over 100 channels to an unlimited number of displays
ZvPro610 HD Video Distribution over COAX/VGA 1080P/I 720P 480P
-
Distribute one channel of digital SD or HD up to 1080i/p throughout your entire facility over coax cable infrastructure
-
Frequency agile, MPEG-2, QAM encoder/modulator
-
Supports Dolby Digital AC-3, 5.1 audio
-
Closed Captioning and Emergency Alert System support
-
Five Year Warranty
Also available: Component / VGA 1080p encoder with IP out
ZvPro610 HD Video Distribution over COAX/VGA 1080P/I 720P 480P
-
Distribute one channel of digital SD or HD up to 1080i/p throughout your entire facility over coax cable infrastructure
-
Frequency agile, MPEG-2, QAM encoder/modulator
-
Supports Dolby Digital AC-3, 5.1 audio
-
Closed Captioning and Emergency Alert System support
-
Five Year Warranty
Also available: Unencrypted HDMI encoder with IP out

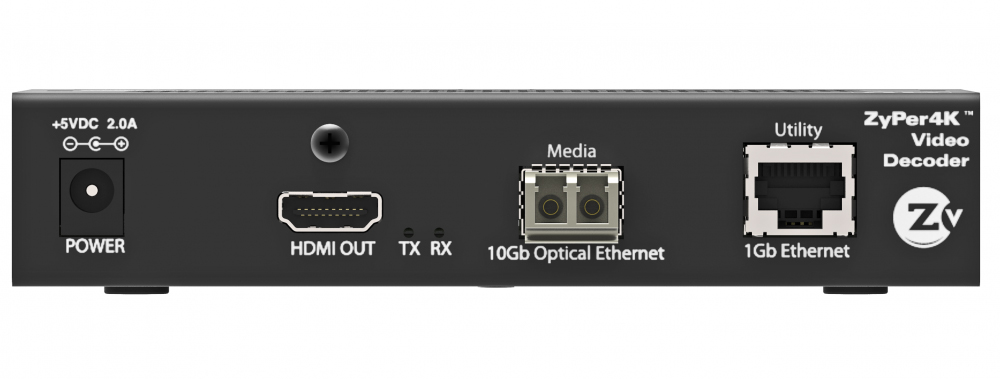

ZyPer4K Decoder for Fiber Cables
-
Distribute and share uncompressed video (1080p or 4K/UHD), 7.1 digital or analog audio, and control connected peripherals using standard 10Gb Ethernet switches
-
Create and control a video wall with up to 25 screens (5×5)
-
Each ZyPer4K decoder includes a 1GB high speed network port for additional connectivity
-
HDMI 2.0 and HDCP Compliant
-
Can be used in a point-to-point configuration or via a switch to receive 4K video up to 30km away
ZyPer4K Encoder for Fiber Cables
-
Distribute and share uncompressed video (1080p or 4K/UHD), 7.1 digital or analog audio, and control connected peripherals with RS232 or Infrared, using standard 10Gb Ethernet switches and cables up to 25 miles away.
-
Can create and control a video wall with up to 25 screens (5×5), eliminating the need for expensive video wall processors and controllers for most video wall configurations.
-
Each ZyPer4K decoder includes a 1GB high speed network port for additional connectivity for webcams, Wi-Fi extenders, live video input feeds, facial recognition cameras and Smart TVs.
-
HDMI 1.4 and HDCP Compliant
-
Can be used in a point-to-point configuration to transmit 4K video up to 40km away
ZyPerMX
-
Encodes video and audio using H.264/MPEG-4 encoding for maximum compatibility
-
Supports input and output resolutions up to 1080p Full HD
-
8 Channel audio support including Dolby Digital, MPEG-1 and PCM
-
Supports an unlimited number of displays or projectors
-
Built-in web server and Telnet protocol support for easy control and configuration
ZyPer Management Platform for 1-24 Endpoints (Encoders + Decoders)
-
Preconfigured Linux O/S is maintenance free and includes upgrades and support
-
Plug & Play operation will discover and enable labeling and control of any number of ZyPer4K encoders and decoders
-
Interface allows the independent routing of video, audio and control signals
-
The feature rich API makes ZyPer4K the perfect add-on to existing distribution systems without the time and dollars usually required for custom programming
-
Presets enable signal routing and scheduling of saved, pre-defined source-display settings for easy duplication and recall
-
Real time system monitoring includes generating alerts for offline or disconnected ZyPer4K devices, sources and displays
-
Auto detection/discovery of additional encoders and decoders make system scaling a snap
-
Easily create and manage video walls of any pattern or configurations up to a 5×5 array
THE COM2000 SYSTEM
The COM2000 system has been designed specifically for hotels and similar installations where there is a need for a single wire solution for multiple rooms. The COM2000 system offers up to 48 tuners in a scalable system that takes up a small space in an equipment rack. It creates a head-end systemwhere every TV can be tuned to its own channel without interfering with other TVs.
FEATURES
- Compact Form Factor
- HD Content Protection
- Integrated Edge QAM
- On-Screen Program Guide
- Remote Management
THE COM2000 SYSTEM

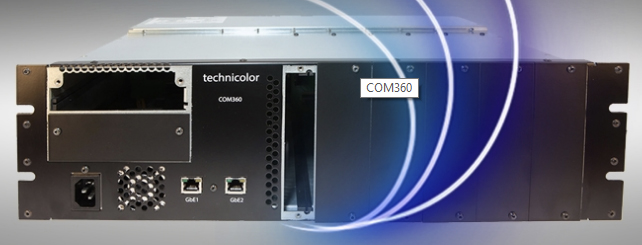

The COM360 chassis is the foundation for the COM2000 system providing the housing, power supply, GbE backplane and cooling system required for the DIRECTV receiver blades and EdgeQAMs.
- Chassis Dimensions: 3RU (5.25”H x 17”W x 13”D)
- 2 x QAM6 EdgeQAM slots
- 6 x Receiver slots (COM46, COM24 or COM24-FLX)
- 2 x Gigabit Ethernet connectors
- Commercial Power Supply (120V)
- No more than 225W power consumption fully loaded
- Can be daisy-chained for higher channel count installations

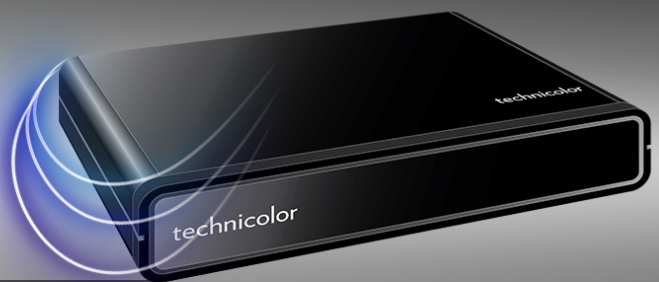

DCI401MCS Pro:Idiom HD Security Terminator
HD content delivered over an RF distribution requires that content protection be applied. For the hospitality market, the standard content protection system is Pro:Idiom™. Commercial TV sets can be purchased which will decrypt this protection in order to properly display content, however, in applications where commercial TV sets are either not available or have not been deployed, the DCI401MCS is the perfect solution. The DCI401MCS is a small adapter box which can receive the modulated RF content, decrypt the Pro:Idiom™ protected content, then deliver to a display using an HDMI connector. For unprotected HD or SD content, the DCI401MCS can output to a display using HDMI or a modulated channel 3/4 RF connector.
- HDMI output of Pro:Idiom™ protected content originating on a COM2000
- Small form factor (4.33” x 0.96” x 3.19”)
- Analog RF output on channel 3 or 4 of SD or HD In-the-Clear programming
- RF Remote Control to allow for flexible mounting options
- Programmable IR commands to control TV power and volume
- Receives local Over-the-Air channels not available from DIRECTV
- IP output to the COM2000 system
- 8 available ATSC digital tuners
- May require GbE-1 card in slot-1 to accept IP input over 100Mbps
ATSC-8
The latest addition to the COM2000 family includes an off-air tuner capable of receiving ATSC HD content, outputting this content in IP format for easy re-distribution utilizing the QAM6. The ATSC-8 includes 8 digital tuners which are capable of tuning to 8 unique ATSC channels (13.1, 13.2, 13.3, etc…) or to 8 different frequencies in order to provide the entire ATSC channel offering (6, 8, 13, etc…). In the latter setup option, all the sub-channels can be included using a Multiple Program Transport Stream (MPTS) and allows for the entire ATSC channel to be transferred to a QAM channel, thus maximizing the tuner capacity
